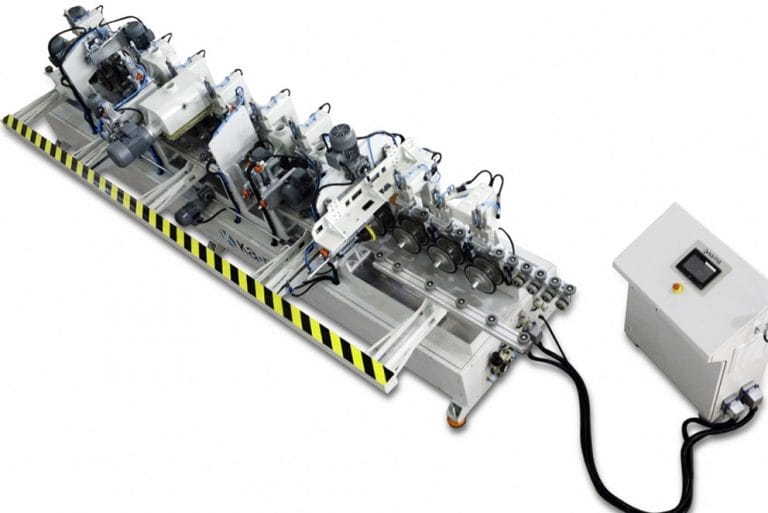

KR PM 10 PROFILE SANDING MACHINE

KR PM 10 Profile Sanding Machine is a new generation full automatic machine which is designed and developed for sanding door cases, trims, baseboards and all types of profiles raw or primed.

STANDARD FEATURES I KR PM 10 PROFILE SANDING MACHINE

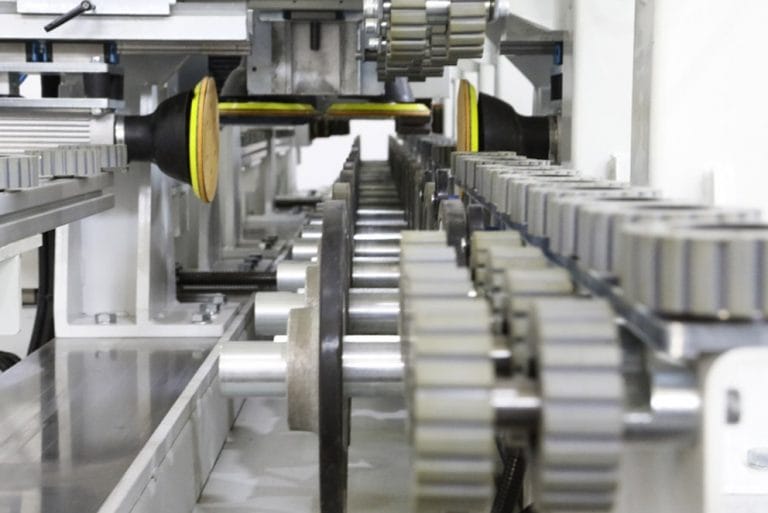

OSCILLATORY ORBITAL SANDERS FOR EDGES

There are 2 oscillatory orbital sanders for profile edges of the profile as a standard. These motors are PLC controlled and their press forces, start & finish points are adjustable. They just start pressing on time when the product reaches to this station.

OSCILLATORY ORBITAL SANDER FOR TOP SURFACE

There is 1 oscillatory orbital sanders for the top surface of the profile as a standard. These motors are PLC controlled and their press forces, start & finish points are adjustable. They just start pressing on time when the product reaches to this station.

RECTANGLE VIBRATION SANDER

There is one rectangle sander motor without oscillation as a standard on KR PM 10 in order to sand door frame rebates. Its press force, distance & height are adjustable. This motor is also PLC controlled and they just start pressing on time when the product reaches to this station.

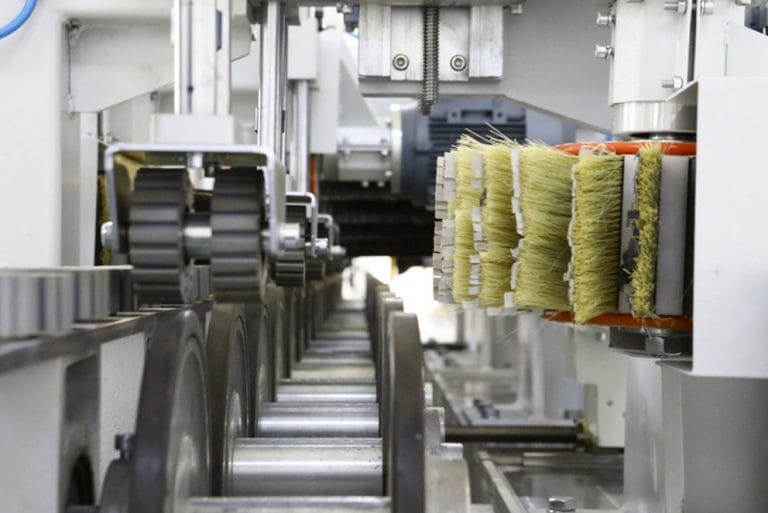

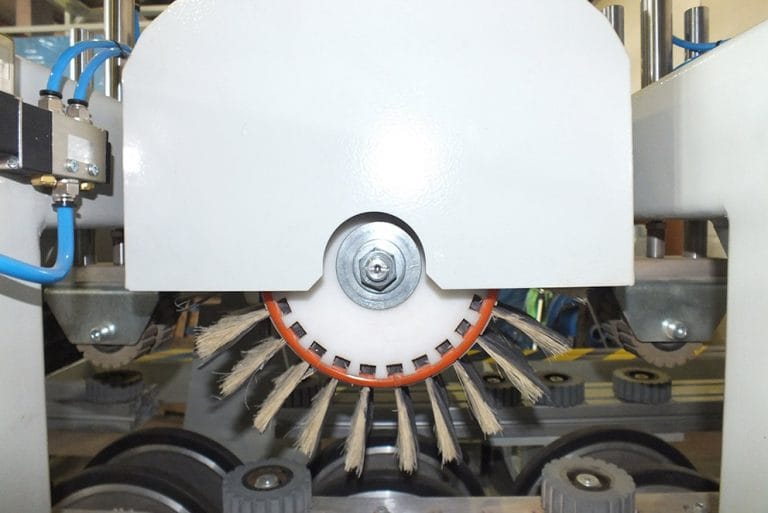

OSCILLATORY CYLINDRICAL BRUSH SANDER

There are 2 Oscillatory Cylindrical Brush Sander on this station. This unit is also PLC controlled and its height, revolution and distance can be adjusted easily.

BRUSH SANDERS FOR EDGES

There are 2 cylindirical brush sander units as a standard. These sanders are PLC controlled and developed in order to sand both edges of the profiles no matter if the edges are flat or rounded. These units start pressing on time when the product reaches to this station as well and their revolutions, distances and angles can be adjusted easily.

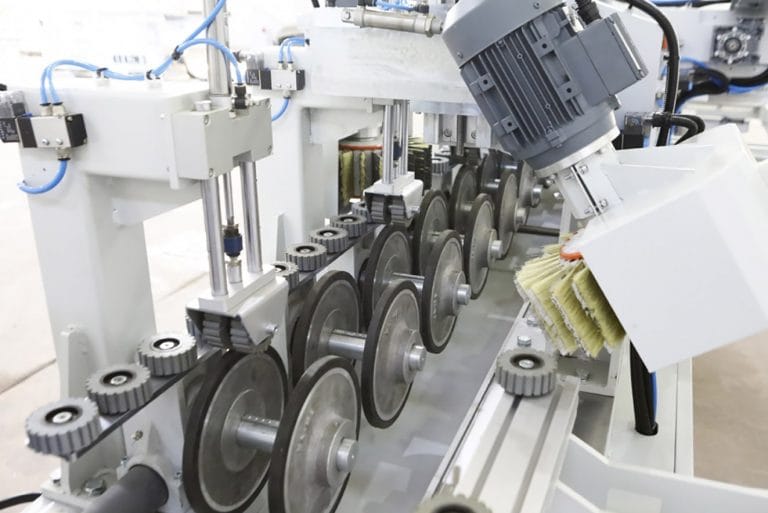

MOP SANDERS

There are 2 mop sanders for sanding special splined profiles.

CONTROL SYSTEM

All settings such as conveyor speed, independant orbital units, positions of the aggregates can be adjusted easily on 10″ touch screen.

TECHNICAL SPECIFICATIONS

Total Weight: 3.100 Kg
Dimensions: L: 5.730 mm W: 1.230 mm H: 1.650 mm
Max. Operating Pressure: 6 Bar.
Total Electrical Demand: 9.6 kW/h
Max. Operating Speed: 15m/min.
Max. Product Length: Limitless
Max. Product Height: 100 mm
Min. Product Lenght: 650 mm
Min. Product Width: 60 mm
Min. Product. Height: 6 mm
Max. Product Widt: 250 mm

Watch Now KR PM 10 Profile Sanding Machine

General Catalog

• I am interesting in KR PM-10 Profile sanding machine, is there any chance to see while working?

*Of course! We will  be glad to make you demostrations with our machines at our Showroom. And we have a large ‘ Satisfied Customer Network’ in more than 30 countries around the World who could share you the experiences and happiness about our machines.

• What is the warranty period of the KR PM-10 Profile Sanding Machine?

*Our waaranty period is 1 year . After 1 year , you can quote for the technical service/ General Maintanence. When you quote , you will  take advantage of %30 discount on spare parts.

• Why I should prefer KA MA KR PM-10 Profile Sanding Machine?

* In the market; When you compare edge sanding machines, wood sanding machines, brush sanding machines prices and qualities, You will see that Ma Machine’s price / quality is much profitable than the others.

• Why I should prefer KR PM-10?

Every Machines we produce has special properties, but Comparing with the other brands, KR PM -10 has PLC control which gives you adjust and control your machine with very high sensibility and these are the properties that you can find at a few competitors but with higher prices.

• What is the compressor capacity thay I need to run for dust removal unit?

*The KR PM-10 Profile Sanding Machine needs, min. 7700m3 dust removal unit will be enough. And the air consumption you need is 550 lt/min which 6 bar working pressure compressor supplies you.

•  What is the Price of the KR PM-10 Pprofile Sanding Machine?

*To get the price of Brush Sanding machines please contact with us by our web site, call center or social media. Our sales deparment will call you after your request as soon as possible.
