BRUSH SANDING MACHINE

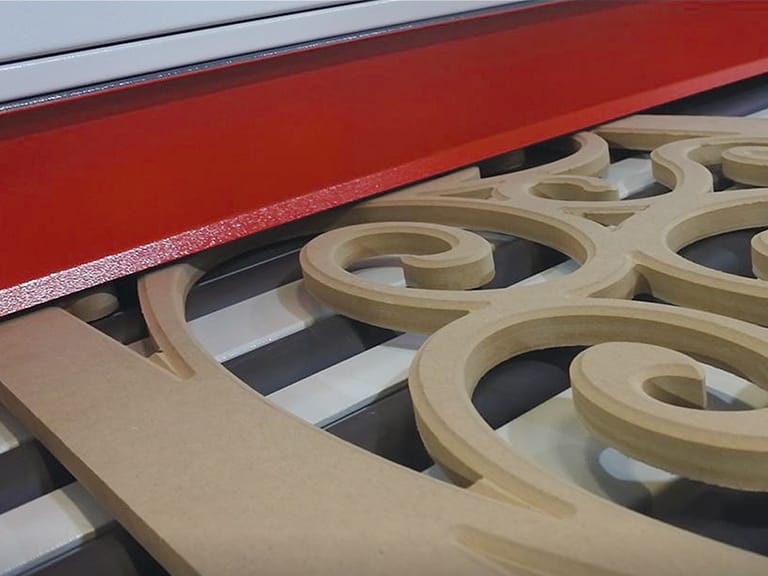

KR FZM 1300.2 which is developed to sand raw, primer or filling applied profiled, carved & flat surfaces achieves successful results even on the most difficult surfaces thanks to its flexible sanding feature.
APPLICATION AREAS
KR FZM 1300-2 BRUSH SANDING MACHINE
STARDARD FEATURES
CONTROL SYSTEM
This panel allows for easy input of values for the positioning of all units, conveyor belt movement speed, which units will operate, how far the brush sanders will penetrate the product, and the movements of independent orbital sanding units. It can also enable the optional IoT system to track all production data online and send daily production reports.
OSCILLATORY DISC BRUSH SANDERS
This unit consists of a total of 18 pieces, 9+9, with a diameter of 250 mm oscillating disc brush sanders. It ensures the sanding of textures and primer on the product with a 1mm precision working position.
OSCILLATORY CYLINDER BRUSH SANDERS
This unit consists of a total of 6 pieces, 2+2+2, with a diameter of 320 mm oscillating cylinder brush sanders. It ensures the sanding of textures and primer on the product with a 1mm precision working position.
MOVABLE CONVEYOR TABLE
The conveyor is mobile and can be adjusted with a 1mm precision according to the product’s thickness. It can be automatically adjusted based on the desired piece thickness from the touchscreen. The maximum working speed is 8m/min.
VACUUM TABLE
The vacuum system prevents products from being damaged and ensures their movement on the conveyor belt.
MOVABLE AIR JET UNIT FOR DUST REMOVAL
This equipment cleans the sanding dust from the product before it exits the machine.
AUTOMATIC LUBRICATION SYSTEM
This system ensures a smooth and long-lasting operation of the reciprocating arms by automatically lubricating the lineer bearings and guides.
OPTIONAL FEATURES
EXTRA WORKING WIDTH & HEIGHT
- KR FZM 1300.2 can be optionally manufactured to accommodate:
- a sanding width of 1500 mm,
- a sanding height of 200 mm.
CROSS BRUSH UNIT
Working horizontally in the direction of travel, it reduces sanding marks. It allows for detailed sanding of parts with rustic and CNC processing on the 2nd and 3rd axes. It consists of a total of 2 units and 4 brushes.
TECHNICAL SPECIFICATIONS
Total Weight: 5.310 kg
Dimensions: L: 5.820 mm W: 2.330 mm H: 2.000 mm (Top Warning Light Installed Height: 2300 mm)
Total Electrical Demand: 27.78 kW/h
Air Consumption: 7 Bar, 260L/min
Max. Product Length: Limitless
Max. Product Width: 1300 mm
Max. Product Height: 200 mm
Min. Product Length: 350 mm
Min. Product Width: 150 mm
Min. Product Height: 3 m/min.
Max. Conveyor Speed: 8 m/min.
Sand Paper Grit Range: P2000 – P80
Working Direction: Left
- I am searching for wood sanding machine, which automatic sanding machine do you suggest?
We have different aoutomatic sanding machines varying according to the your aim. We have to find out which machine you need through our machines ,Automatic Surface sanding machine, Brush sanding machine, Edge sanding machine or Profile sanding machine . If your surfaces are graved with CNC or have rustic surfaces should use FZM type machines, if there is totally flat surface will be sanded you have to use our YZM series machines are compatible. For the graved or rustic pieces when you want to sand only raw MDF FZM 1300-1 is compatible, but when you want to sand both raw MDF and Base coat applied pieces its better to use FZM 1300-2. To have more information please contact with us by call center or whatss-App line.
- I am interesting in wood sanding machine, is there any chance to see while working?
*Of course! We will be glad to make you demostrations with our machines at our Showroom. And we have a large ‘ Satisfied Customer Network’ in more than 30 countries around the World who could share you the experiences and happiness about our machines.
- What is the warranty period of the KR FZM 1300-1 Wood Sanding Machine?
*Our waaranty period is 1 year . After 1 year , you can quote for the technical service/ General Maintanence. When you quote , you will take advantage of %30 discount on spare parts.
- Why I should prefer KA MA Automatic Sanding Machine?
* In the market; When you compare wood sanding machines, sanding machines, brush sanding machines prices and qualities, You will see that KA.Ma Machine’s price / quality is much profitable than the others.
- Is there any problem when the small pieces or accesories be sanded by KR FZM 1300-2 Wood Sanding Machine? Are they stay stable on the conveyor?
*Thanks to vacumated conveyor, the small pieces goes stable and sanded properly with KR FZM 1300-2 Wood Sanding Machine. Our Vacuum sytem hold the small pieces strongly, and maket hem stable so provides you the best result you can get.
- For the wider panel, I need wider sanding machine than the standarts, Can you produce wider size wood sanding machine?
*We can produce KR FZM 1300-2 Multipuporse Wood Sanding Machine according to your request up 1500mm sanding width, 200mm sanding height. Thereby you can produce not only Wide Panels, but also Billards Table and mansion wider doors easily.
- What are the replacing period of the sand paper for KR FZM 1300-2 Sanding Machines?
*To have continious and well sanded pieces, you have to change the sand papers in the machine after 5000m2 sanded pieces. And also you have to change the brushes -which are produced specially for this kind of sanding- after 25000m2.
- Why should I prefer KR FZM1300-2 Wood Sanding Machine?
*All the machines has specialities for its own. But with our machines you will find the optimization with the sand quality and price ratio when compared with the other producers. That you will see high efficiency that is uncomparable with the others.
- What is the compressor capacity thay I need to run for dust removal unit?
*The KR FZM 1300-1 Professional Sanding Machine needs, min. 15500m3 dust removal unit and 250lt/dk 6-8 bar screw compressor.
- What is the Price of the Brush Sanding Machine?
*To get the price of Brush Sanding machines please contact with us by our web site, call center or social media. Our sales deparment will call you after your request as soon as possible.
- I want to buy Door Sanding machine KR FZM1300-2 Sanding Machine first, but when I buy Automatic Coating machine and UV Curing owen. Can I run them as integrated/connected?
*Yes , we can add all machines and you can run integrated or seperately.
- With KR FZM 1300-2 Sanding Machine, which kind of doors could be sanded?
With KR FZM 1300-2 you can sand rustic, carved, worked with CNC, grooved type also flat surfaces can be sanded with the perfect results.
