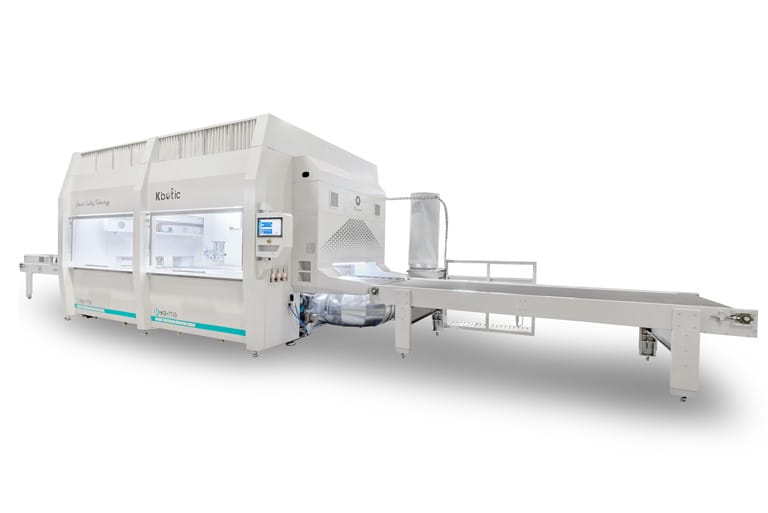

AUTOMATIC SPRAY MACHINE
KR BM 1000 B, which is designed for Automatic Painting of panel-shaped products, is an extremely easy to use machine with its superior technological features. It provides %30 saving with its paint recovery system and allows its users to ensure high quality and economic finishing. KR BM 1000 B is ideal painting solution for small and medium scale businesses.
APPLICATION AREAS
KR BM 1000 B AUTOMATIC SPRAYING MACHINE
KR BM 1000 B, which is designed for Automatic Painting of panel-shaped products, is an extremely easy to use machine with its superior technological features. It provides %30 saving with its paint recovery system and allows its users to ensure high quality and economic finishing. KR BM 1000 B is ideal painting solution for small and medium scale businesses.
STANDARD FEATURES I SPRAYING MACHINE
ASPIRATION AND VENTILATION SYSTEM
Overspray is sucked through two-stage dry filters. Large filtering surface area ensures better air distribution, which translates into uniform finishing and a cleaner machine. Inverter controlled tubeaxial fans which pump clean air inside the cabin through
the F5 filters are located on the top of the machine.
This system provides optimum pressure inside the cabin.
PRODUCT SCANNING SYSTEM(READING BARRIER)
32 pcs sensor beam is positioned under the motorized feeding rollers, ensures a millimetric precision on determining the section which will be painted. It minimises the wastage of paint.
PAINT RECOVERY & BELT CLEANING SYSTEM
Paint on the polyolefin conveyor belt is scraped automatically and can be used again with the paint recovery system. Cleaning system cleans the belt with a solvent or water (if the paint is waterbased) and rubber blade dries the belt totally.
CONTROL SYSTEM
In KR BM 1000B ,a 7″ color touch screen is provided as standard, allowing you to control and memorize all functions and operating parameters. All production data can be tracked online by optional IOT system and it can send daily production reports.
SPRAYING SYSTEM
The machine is equipped with 1 central painting arm. Movement speed can be adjusted automaticlly by touch screen. Arm speed can reach max. 180m/m. Thanks to its portable design, it allows you to easily change the gun and adjust the angle and height.
1 high pressure pump and 4 high pressure guns are provided as standart.
CONVEYOR BELT AND CENTERING SYSTEM
KR BM 1000 B, paints products on specially developed polyolefin belt. This belt does not keep paint on itself. With its belt cleaning system, it cleans with less thinner than its competitors. The belt also features an automatic centring device to guarantee correct conveyor belt positioning on the high precision carriage.
AUTOMATIC LUBRICATION SYSTEM
This system ensures a smooth and long-lasting operation of the reciprocating arms by automatically lubricating the lineer bearings and guides.
OPTIONAL FEATURES I SPRAYING MACHINE
FAST COLOR CHANGING VALVE
Four way valve which is specially developed for KR BM 1000 B enables a fast color change between maximum three (3) different colors.
SPRAY POT
Paint consumption can be minimized by using the paint in the spray pots and low pressure guns instead of high pressure pump & guns. This system is recommended for an option for boutique production style.
EXTRA HIGH PRESSURE PUMP
1 high pressure pump is provided as an option according to need.
EXTRA LOW PRESSURE PUMP
1 low pressure pump is provided as an option according to need.
TECHNICAL SPECIFICATIONS I SPRAYING MACHINE
Weight: 3400 kg
Dimensions: L: 5.400mm W: 4.000mm H: 2.650mm
Electricity Consumption: 13 kW/h
Working Width: 50mm-1300mm
Working Height: 3mm-100mm
Working Length: 300mm-Unlimited
Aspiration Fan Flow Rate: 12.000 m³/h
Ventilation Fan Flow Rate: 12.000 m³/h
Air Consumption: 1100 L/min
Air Pressure: 7 Bar
Max.Robot Arm Speed: 220 m/min
Max Conveyor Speed: 8 m/min
Optimum Dyeing Speed Range: 3-6 m/min
Usage Area
Doors, door pulleys, door frames, modular furniture, kitchen and bathroom furniture, flat and carved cabinet doors, glass.
Paint Materials that can be used in painting
Polyurethane, water-based, acrylic, cellulosic, UV raw and paints and varnishes, adhesive, water and solvent based surface colorants.
Watch Now KR BM 1000 B Automatic Spraying Machine
- I am interested in your KR BM-1000 Spray Coating Machine for Furniture Painting, do I have a chance to see it while it is working?
*Of course! We will be pleased to welcome you in our showroom. In addition, each of our provinces in Turkey, and more than 30 countries over World , there are many”Satisfied Customer Network” who will be our reference of us and our machines that can share their experiences with you.
- I need a KR BM-1000 Painting Machine. Can I get quality results?
* Be sure! We know that lacquering and painting applications are laborious and requires many processes and high precision in order to have best levelling on the surface to be painted. Our KR BM-1000 Painting Machine is exactly what you need in order to achieve the quality and continuity you can never achieve with convetional application.
- How many doors can I paint in an hour with the KR BM-1000 Aoutomatik Spray Coating Machine.(Electric Paint Sprayer)?
* With our KR BM-1000 Paint Spray Machine, you can reach the quality and capacity that you can never achieve with conventional paint spray guns. This means that you can paint around 120 single-face doors per hour.
- First of all, I want to buy a Furniture Painting Machine .When I buy KR BM-1000 Automatic Spray Painting Machine, but if I want to buy a Wood Sanding Machine or UV Dryer in the future, can I run them all connected?
* Yes, you can use all of our machines as a unified continue line thanks to the Movable Entry Conveyors. If you wish, we can even set up a turnkey dyehouse facility by making all engineering calculations for you.
- Can I apply all kind of paints and varnishes with KR BM-1000 Automatic Spray Machine?
* With KA.MA KR BM-1000 Automatic Painting Machines, you can use all kinds of paints (polyurethane, water-based, acrylic, cellulosic) and solvent-based surface colorants as well as laqueer and varnish in your products. Moreover, you can easily apply these materials, whose manual application requires mastery and delicacy, even with digital printing, with peace of mind, evenly distributed over the entire surface.
- How long is the warranty period of KR BM-1000 Furniture Painting Machine?
* For KR BM-1000 Automatic Spray Paint Machine, the warranty period is 1 years for mechanical parts and 1 year for electronic parts. You can benefit from our promotional maintenance agreements for the following years; 2 pcs. General Maintenance / Repair, 2 pcs. As a Technical Service,totaly 4 pcs per year. you can get 30% discount will be applied to your spare part requests in case of need during our contractual services.
- How do we use the Touch Control Panel on the KR BM-1000 Automatic Sprey Painting Machine?
* Our Technical Service Team will train you and your staff during the installation of your KR BM-1000 Automatic Spray Machine. You will see that you can easily make all the measurements and settings for your product to be painted in a very short time. Thus, the time you will gain, your increased capacity and quality; It will provide you with the support you need to connect new customers and businesses and expand your market.
- Why should I choose Ka.Ma KR BM-1000 Automatic Coating Machines?
* In the market; When you compare paint machine prices, paint sprayer prices, door painting machine prices, lacquer paint machine prices, furniture painting machine prices, automatic painting machine prices, automatic lacquering machine prices and qualities, You will see that KA.Ma Machine’s price / quality is much profitable than the others.
- I will expand my woodworking business. How can you help me with my investment?
* Our company, which has been on its way with a steady rise for years, will be pleased to be with you with its well-equipped engineers and technical support staff. Our team consists of experts from both the woodworking machinery manufacturing industry and the furniture industry. Therefore, we know your needs very well. In all kinds of infrastructure- superstructure and machine choices; You can be sure that we will provide the best and most economical solutions in line with your needs.
- How will we learn to use the KR BM-1000 Spray Paint Machine? Should a good master use it?
* During the installation phase of the KR BM-1000 Wood Painting Machine, our colleagues in the technical team will give you the necessary training, product tests will be done and they will deliver our perfectly working machine to you. Since all settings and production controls can be made from the PLC screen; A master who can use smart phone technology and adjust the consistency (viscosity) of paints can easily use our machines correctly.
- What is the time and thinner consumption for cleaning in the KR BM-1000 Automatic Spray Coating Machine?
* The Polyolefin Conveyor we use in the KR BM-1000 Automatic Spray Coating Machine
It cleans is self automatically. You can clean the parts in the scraper unit with the help of a wet or thinner cloth in 20 minutes depending on the paint you use, and the nozzles (nozzles) on the ends of the spray paint spray gun with the help of a brush. Thus, you can complete the daily cleaning of your machine in a very short time with around 4 liters of thinner.
- How many doors can we paint daily with the KR BM-1000 Door Painting Machine. Is primer enough for application in one coat or do we need to apply primer and top coat in 2 coats?
* In our KR BM-1000 Spray Wood Painting Machine, you can apply 1 coat of primer on 500 doors per day. It is recommended to apply 2 coats of primer and 2 coats of top coat to the products to achieve the highest quality.
- Can I use UV coatings in your KR BM-1000 Spray coating machines?
* In all of our KR BM-1000 Paint Spray Machines; Polyurethane, water-based, acrylic, cellulosic, water and solvent-based surface colorants,paints and varnishes can all be used. But if you want to use UV primer – paints and varnishes, you should choose our Aqueous Filtration System model in order to reduce emission values and control harmful particles. Also, for UV paint, you should definitely use the UV Drying Line – UV Drying Tunnel.
- Are you installing also the exhaust chimney pipes?
* The exhoust fan chimney will be installed untill the snail fan . The rest chimney will be organised by the customer becouse every customer has different conditions. We will give you all the instructions and details that you need to install.
- What compressor will we use in the Spray Wood Painting Machine BM-1000? How big should the dust hood be?
* In our KR BM-1000 Paper or Belt Automatic Painting Machines, a chimney that will provide at least 12.000 m3 snail fan blow and a compressor that can meet the air consumption of 1.000 lt / min will be sufficient.
- How can I find out the prices of KR BM-1000 Door Painting Machine?
* To reach KR BM-1000 Door coating machine price please contact with us from our web site or you can reach by calling our call center. And the sales team will contact with you as soon as possible.
- How is the shipping of the machine we purchased?
* In our Standard Contracts, shipping belongs to the buyer. However, we inform you about the vehicle features required for the safe transportation of the machine you purchased. In addition, if you request, we as the seller, can undertake the shipping transactions, provided that you are invoiced.
