KR FZM 1006 FLEXA BRUSH SANDING MACHINE
Developed for raw and primer sanding of rustic and CNC carved surfaces, KR FZM 1006 Flexa Brush Sanding Machine achieves successful results even on the most difficult surfaces with its flexible sanding feature.
APPLICATION AREAS
KR FZM 1006 FLEXA BRUSH SANDING MACHINE
KR FZM 1006 Flexa Brush Sanding Machine is developed for raw and primer sanding of rustic and CNC carved surfaces, the KR FZM 1006 Flexa Brush Sanding Machine helps you achieve successful results even on the most difficult surfaces with its flexible sanding feature.

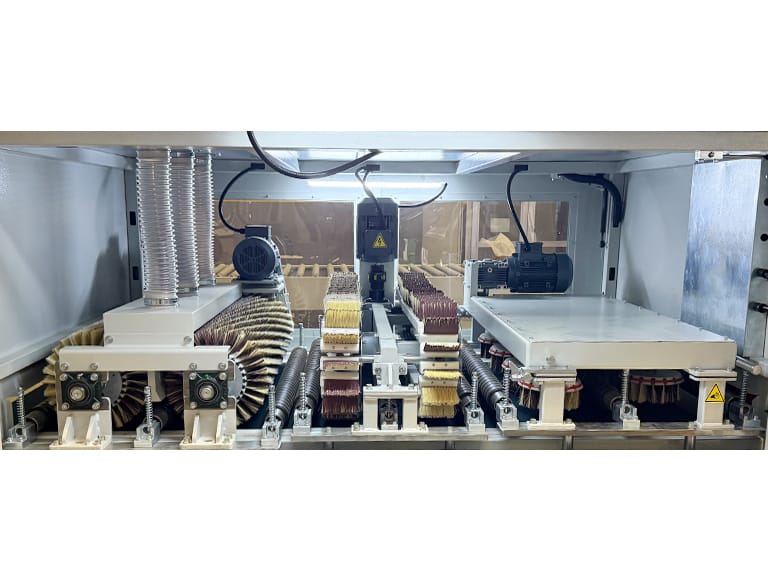

STANDARD EQUIPMENT
DISC BRUSH SANDING UNIT
This unit consists of 8 disc brush sanding machines arranged asymmetrically. The sanding pressure position and rotation speed of the unit can be adjusted steplessly.
CROSS BRUSH SANDING UNIT
This unit consists of two brush sanding pallets rotating in opposite directions. Sanding rotation speeds and pressure positions can be adjusted steplessly.
CYLINDRICAL BRUSH SANDING UNIT
This unit consists of two cylindrical brush sanding machines rotating in opposite directions. The sanding pressure position and rotation speed of the unit can be adjusted steplessly.
TECHNICAL SPECIFICATIONS
Weight: 1700kg
Dimensions: L: 2650mm W: 1800mm H: 1780mm
Electricity Consumption: 6.25kw/h
Total Dust Collection Requirement: 3500m3/h
Max Working Speed: 8.5m/min
Min Product Width: 50mm
Max. Product Width: 1000mm
Min. Product Length: 350mm
Max. Product Length: infinite
Min. Product Height: 6mm
Max. Product Height: 80mm
Usable Sanding Grit Range: p 40 – p 600
