APPLICATION AREAS

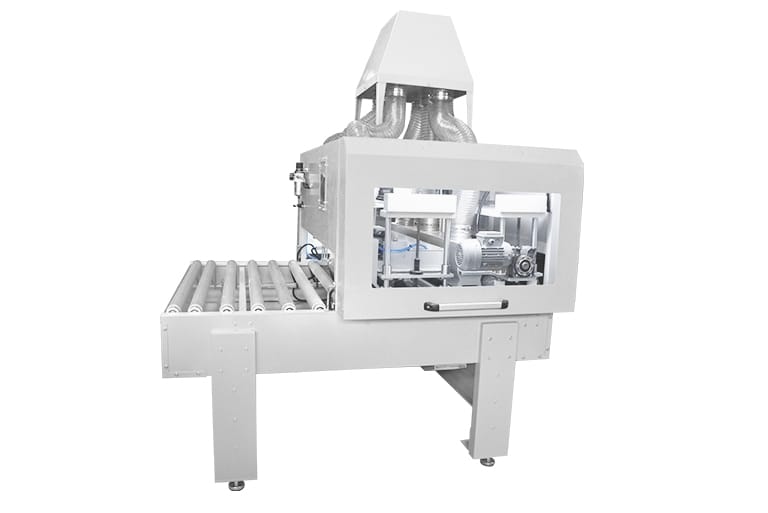

DOUBLE SIDE PANEL CLEANING SYSTEM
DOUBLE SIDE PANEL CLEANING SYSTEM – Standard Features
› Air Jet (double-nozzle, 8 air jets)
› Brush Cleaner (height adjustable automatically with joystick)
› Anti-Static Bar (eliminates static electricity for better cleaning)
› Oscillating Blowing Bar (ensures the cleaning of the bottom surface of products)
› Driven Roller Conveyor (forward movement with a reducer motor, controlled by an inverter)
Optional Features
› Bottom Surface Brush (an additional brush is added for more effective cleaning of the lower part of the workpiece)
TECHNICAL SPECIFICATIONS
Weight: 870 kg
Dimensions: W: 2.110mm H: 2.665mm L: 2.145 mm
Total Electricity Consumption: 3,5 kW/h
Conveyor Working Speed (Max): 19 m/min
Workpiece Width (Max): 1300 mm
Workpiece Height (Max): 180 mm
Workpiece Size: Unlimited
Dust Collection Flow (Max): 10000 m³/h
Dust Collection Rate (Max): 30 m/h
Supply Air Pressure: 6 Bar
Supply Air Requirement: 2800 L/min
Watch Now Double Side Panel Cleaning System
